Coleman MACH 9xxx Series Heat Pump/Heat Ready Digital Control Box Kit

Connect your 9xxx Series digital wall thermostat to different Heat Pump/Heat Ready zones with this control box package.
Item # 92978
Special Order Item No
Ships LTL Freight No
Return Policy 30 Days (After Delivery)
5+ In Stock

Description / Coleman MACH 9xxx Series Heat Pump/Heat Ready Digital Control Box Kit

A control box kit is considered the "middleman", it gets installed between your rooftop air conditioning unit and your thermostat.



If you plan on connecting multiple air conditioners to a single wall thermostat then this kit will be required in certain applications.

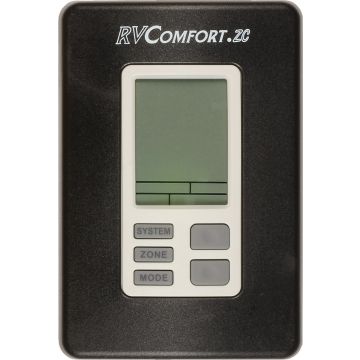

This 9xxx Series Zone Control Box Kit is required if you have a Coleman MACH Heat Pump/Heat Ready Air Conditioner and you are using it in conjunction with Coleman MACH's Thermostat Part #'s 9330A3341 (Black) or 9330A3351 (White).



Each rooftop AC and/or Heat Pump unit has to be connected to its' own control box to then be able to connect to your 9xxx Series Wall Thermostat.



FOR EXAMPLE ONLY: If you have 3 rooftop air conditioning units (1 Cool Only, 1 Cool/Heat, 1 Heat Pump) then you will need 3 DIFFERENT 9xxx Series Control Box Kits.  Since the kit you are viewing right now on our website is for Heat Pump/Heat Ready units, you will need to view our "Related Products" down below for the other two types of control box kits if you are in need of one for a different application.



Not sure what you have? Please contact Coleman MACH directly at (316) 832-4357 to speak with one of their certified technicians or please send us an email at support@dyersonline.com with your AC unit model # along with your question(s).



*PLEASE NOTE: 9 Series components are not backwards compatible with previous 8 Series Numbers. For example, if you have an 8xxx series control package, you cannot use that control kit with this 9xxx series thermostat. You would either need to purchase the 8xxx series thermostat or upgrade both your thermostat and control kit to the 9xxx series if able to.

More Information

Item # 92978
Brand Coleman-Mach
Series Coleman MACH 9xxx Series Zone Control
Model 9630A751
Fits Coleman MACH RV Rooftop Heat Pump Air Conditioners Series 450xx, 470xx, 480xx, 490xx, and Series 452xx, 472xx, 482xx, 492xx with Added Heat Strips
Compatible With Coleman MACH 9xxx Series Zone Control Thermostat Part #'s 9330A3341 or 9330A3351
Power Requirement 12VDC
Features For Heat and Cool Control
Included (1) Control Box
(1) Wire Harness With Sensor & Connectors (7330A3231)
(3) Wire Cap Nuts
(2)1024 Metal Clip Nuts
(1) Snap-in Plastic Cable Fastener
Dimensions Control Box: 13-7/8" x 4-3/8" x 2-1/8"
Wire Harness: 28" Long
Warranty Limited 90 Day Manufacturer Warranty
Net Weight 2.45 lbs.
Gross Weight 2.80
Special Order Item No
Return Policy 30 Days (After Delivery)
UPC 755790203116
LTL Freight No
