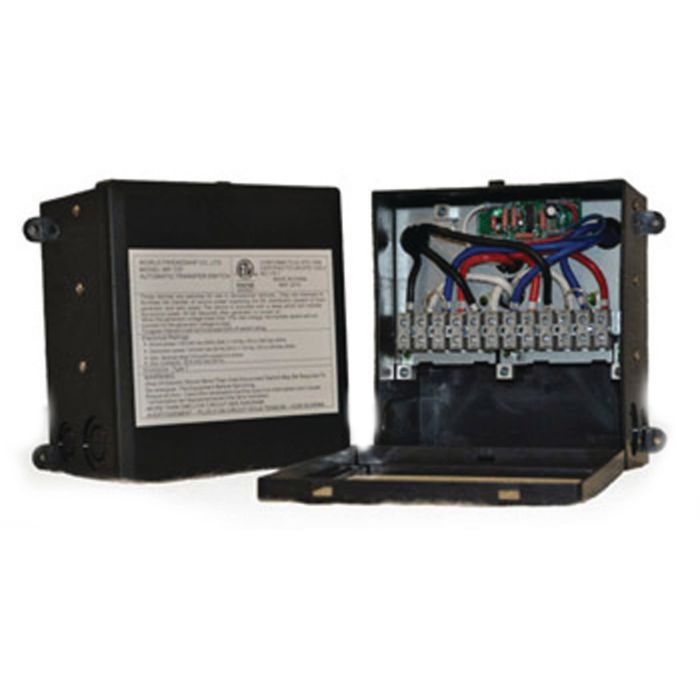

WFCO Power Transfer Switch; 57 Series
The WFCO T-57 is designed to provide trouble-free changeover of power between shore power and generator.
- Item #
- 14819
- Special Order Item
- No
- Ships LTL Freight
- No
Discontinued
This product has been discontinued.
This product has been discontinued. The items below may be similar — please verify the specs match your needs before purchasing, or contact us for help finding the
right alternative.
See Other Similar Items
Description / WFCO Power Transfer Switch; 57 Series
The T-57 Mounts on flat surfaces as a stand-alone in conjunction with any distribution panel.
The WFCO T-30 and T-57 transfer switches are designed to provide trouble-free changeover of power between shore power and generator. The T-57 is designed for 50-amp AC service, and the T-30 is used for 30-amp AC service.The T-30 can be installed on the back of a WFCO 8900 Series Power Center or like the T-57 it can be easily mounted to any flat surface. The compact design allows for placement in areas with limited space. Both transfer switches are engineered for safe, reliable performance.The DC coil in either unit prevents AC “chatter” noiseand drop-out in low-voltage conditions. Accidental coupling of power from or to shore line and generator is prevented by a “break before make” configuration.
When the T-57 is plugged into the shore power, the T-57 will automatically provide AC power to all AC appliances. To operate your appliances from the on-board generator, simply start the generator and the T-57 will (after 20-30 seconds) automatically transfer the electrical power to AC appliances. The time delay of 20-30 seconds allows the generator voltage to stabilize.
The WFCO T-30 and T-57 transfer switches are designed to provide trouble-free changeover of power between shore power and generator. The T-57 is designed for 50-amp AC service, and the T-30 is used for 30-amp AC service.The T-30 can be installed on the back of a WFCO 8900 Series Power Center or like the T-57 it can be easily mounted to any flat surface. The compact design allows for placement in areas with limited space. Both transfer switches are engineered for safe, reliable performance.The DC coil in either unit prevents AC “chatter” noiseand drop-out in low-voltage conditions. Accidental coupling of power from or to shore line and generator is prevented by a “break before make” configuration.
When the T-57 is plugged into the shore power, the T-57 will automatically provide AC power to all AC appliances. To operate your appliances from the on-board generator, simply start the generator and the T-57 will (after 20-30 seconds) automatically transfer the electrical power to AC appliances. The time delay of 20-30 seconds allows the generator voltage to stabilize.
More Information
| Item # | 14819 |
|---|---|
| Brand | WFCO |
| Model | T-57-R |
| Replaces | T-57-P |
| Input | 120/240 volts/50 amps |
| Features | Designed To Provide Trouble-Free Changeover Of Power Between Shore Power And Generator Used For A 30 Amp Or 50 Amp AC Service DC Coiled Relays Prevent AC “chatter” Noise And Drop-Out In Low-Voltage Conditions Accidental Coupling Of Power To Or From The Shore Line And Generator Is Prevented By A “break Before Make” Configuration Time Delay For Gensets To Complete Self-Diagnostics Microsecond Time Delay Switches Provide A Safety Feature By Not Allowing Power Crossover Or “arcing” Offers Plenty Of Internal Space For Easier Installation And Convenient Terminal Bar Access Mounts Easily Onto A Flat Surface |
| Included | Type: Automatic Function: Transfer Power Between Shore And RV Generator Voltage: 120/ 240 Volt AC Ampere Rating: 50 Amp Length (IN): 9-1/4 Inch Width (IN): 5-1/8 Inch Height (IN): 8-1/4 Inch Color: Black |
| Dimensions | 8-1/4" W; 9-1/4" H; 5-1/8" D |
| Warranty | 2 Year |
| Special Order Item | No |
| UPC | 816227010940 |
