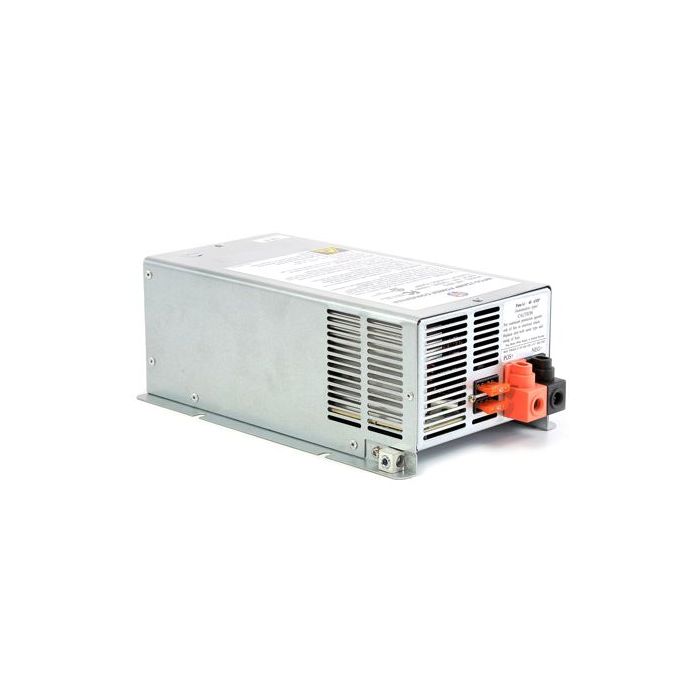

WFCO 75 Amp Converter/Charger
The WF-9800 Series converter/chargers are versatile, advanced power source solutions.
- Item #
- 17298
- Special Order Item
- No
- Ships LTL Freight
- No
Out of Stock
Description / WFCO 75 Amp Converter/Charger
The WF-9875 model provides 75 amps of clean, reliable DC power, which is ideal for powering electronics and appliances. The 9800 Series provides clean power, even without filtering from a battery. Quiet operation is assured as the cooling fan runs only when needed.
Another advantage is FCC Class B compliance for the WF-9875 model, which means that the converter does not cause interference with televisions, radios or other signals. Automatic three-stage battery charging maintains your battery’s life with three nominal voltage output modes: 13.2V DC range “float” mode, 13.6V DC range “absorption” mode, and a 14.4V DC range “bulk” charge mode. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions.
NOTE: 20 amp AC receptacle required
Another advantage is FCC Class B compliance for the WF-9875 model, which means that the converter does not cause interference with televisions, radios or other signals. Automatic three-stage battery charging maintains your battery’s life with three nominal voltage output modes: 13.2V DC range “float” mode, 13.6V DC range “absorption” mode, and a 14.4V DC range “bulk” charge mode. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions.
NOTE: 20 amp AC receptacle required
More Information
| Item # | 17298 |
|---|---|
| Brand | WFCO |
| Series | 9800 |
| Model | WF-9875 |
| Style | Deck Mount |
| Input | 105-130 Vac, 60 Hz, 1300 W |
| Output Amperage | 75 Amp |
| Features | Converter Type: Three-Stage Converter Charger Voltage Output: 13.2 – 14.4V DC Range Absorption Mode (Nominal Voltage): 13.6V DC (nominal voltage) Bulk Mode (Quick Charging Voltage): 14.4V DC (quick charging voltage) Float Mode (Trickle Charge Voltage): 13.2V DC (trickle charge voltage) Over Current : Yes Over Temperature: Yes Over Voltage : Yes Reverse Polarity: Yes Short Circuit: Yes Cooling System: Yes Certifications : FCC All models are UL and cUL-Listed and FCC Class B compliant |
| Included | NOTE: This converters power cord is 20A and will require the use of 20A outlet backed by a 20A breaker. |
| Dimensions | 6.3˝ wide; 3.9˝ high; 10.3˝ deep |
| Warranty | 2 Year |
| Net Weight | 6.75 |
| Special Order Item | No |
| UPC | 816227010247 |
