THIS PRODUCT IS NO LONGER AVAILABLE.
This product is not available anymore with the 2-PIN connector. It is only available with the 4-PIN connector. Please see the product below for more information on how to use the 4-PIN connector instead of the 2-PIN.

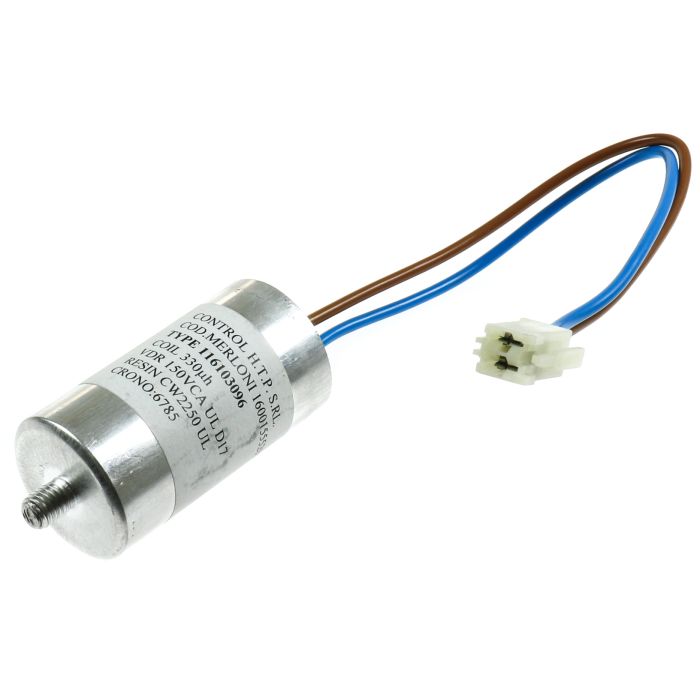

Westland/Splendide Washer/Dryer Replacement 2-PIN Surge Protector
A replacement surge protector w/ a 2-pin connector for some Splendide/Westland appliances.
- Item #
- 93111
- Special Order Item
- Yes
- Ships LTL Freight
- No
- Return Policy
- 30 Days (After Delivery)
DISCONTINUED
Description / Westland/Splendide Washer/Dryer Replacement 2-PIN Surge Protector
IMPORTANT NOTE: This surge protector is SIMILAR to another surge protector that Splendide uses for their appliances, but they are NOT the same and they are NOT interchangeable. BOTH surge protectors have the same 'TYPE' number printed on them (TYPE 116103096). ALL surge protectors from 1996-2020 have had TYPE 116103096 printed on them.
THIS surge protector (manufacturer part # 091054) has a 2-PIN CONNECTOR at the end of the wiring harness. This surge protector is for Splendide units manufactured between 2002-2007 that connect to "vintage" module boards that are obsolete. Those boards have the 2-PIN connection that is compatible with this surge protector.

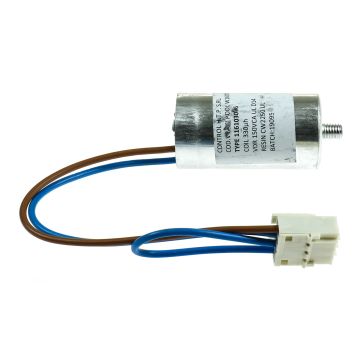

The OTHER surge protector (manufacturer part # 257890) has a 4-PIN CONNECTOR at the end of the wiring harness. That surge protector is for Splendide units manufactured between 2007-2020 and is compatible with Splendide models ARWXF129W (washer), WD2100XC (vented washer/dryer combo), WDC7100XC (ventless washer/dryer combo), as well as a few other less popular models manufactured in that time period. The module boards in these models have the 4-PIN connection that is compatible with the other surge protector (part # 257890).
If you need the 4-Pin connector surge protector, please see below under our "Related Products" section.
If you are not sure which surge protector you need, please email us at support@dyersonline.com with your model # AND your serial # off of your appliance before placing an order.
C00091054 Bobina Protezione Modulo 2002
THIS surge protector (manufacturer part # 091054) has a 2-PIN CONNECTOR at the end of the wiring harness. This surge protector is for Splendide units manufactured between 2002-2007 that connect to "vintage" module boards that are obsolete. Those boards have the 2-PIN connection that is compatible with this surge protector.
The OTHER surge protector (manufacturer part # 257890) has a 4-PIN CONNECTOR at the end of the wiring harness. That surge protector is for Splendide units manufactured between 2007-2020 and is compatible with Splendide models ARWXF129W (washer), WD2100XC (vented washer/dryer combo), WDC7100XC (ventless washer/dryer combo), as well as a few other less popular models manufactured in that time period. The module boards in these models have the 4-PIN connection that is compatible with the other surge protector (part # 257890).
If you need the 4-Pin connector surge protector, please see below under our "Related Products" section.
If you are not sure which surge protector you need, please email us at support@dyersonline.com with your model # AND your serial # off of your appliance before placing an order.
C00091054 Bobina Protezione Modulo 2002
More Information
| Item # | 93111 |
|---|---|
| Brand | Splendide |
| Model | 091054 |
| Fits | Splendide/Westland Washer/Dryer Units Manufactured Between 2002-2007 w/ 2-PIN CONNECTOR |
| Features | Blue & Brown Wire Leads 2-Pin Connector |
| Included | (1) Surge Protector w/ Wiring Harness & 2-PIN Connector |
| Dimensions | Cylinder: 1-3/8" Dia x 2-1/2" L Threaded Shaft: 3/8" L Wire Lead: approx. 10" L |
| Warranty | Limited 90 Day Manufacturer Warranty |
| Net Weight | .35 |
| Special Order Item | Yes |
| Return Policy | 30 Days (After Delivery) |
| UPC | 8059131910544 |
| LTL Freight | No |
Product Questions
Customer Questions
Loading...
Customer Reviews
Quality
5
Price
5
Value
5
Exactly what I needed!
Review by
GB
This part is like a surge protector/slow blow fuse that cuts all power to the washer... had it installed in 20 minutes and back to doing laundry. Part delivered before it was promised... thanks for the great service.
