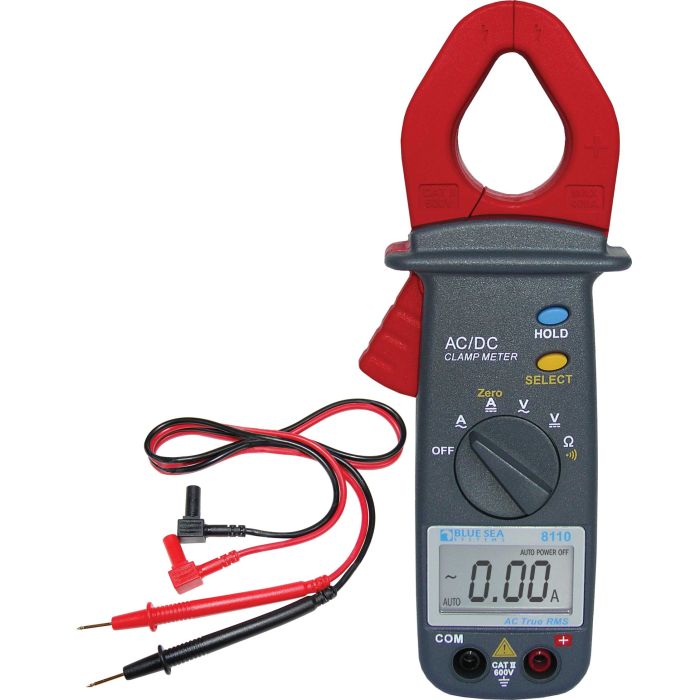

Blue Sea Mini Clamp Multimeter

Item #:
71979
Brand:
Blue Sea Systems
Model:
8110

Be the first to review this product

Quick Overview

Compact and feature rich AC/DC multimeter eases diagnosis of electrical problems.
Price: $189.99
  • Blue Sea Mini Clamp Multimeter - Image 1

Blue Sea Mini Clamp Multimeter Description

SPECIFICATIONS;
AC Voltage: 0.001-600 Volts
AC Current: 0.01-400 Amperes
DC Current: 0.01-400 Amperes
DC Voltage: 0.001-600 Volts
Resistance/Continuity Alarm: 0.1-40Mohms
Maximum Clamp Size: 30mm or 0.39"x1.378" (10mm x 35mm)
Safety Classification: 600 Volts, Category II
Range: Auto
Low Battery Indicator: Yes
LCD Display: 3 3/4 digits
Measurement Resolution: 4300 Counts
Sampling Rate: Approximately 2 times/second
Operating Temperature Range: 0-50C (32-122F)
Operating Humidity: Below 80% RH (no condensation)
Operating Elevation: up to 2000m above sea level

Useful Downloads

User's Manual

Blue Sea Mini Clamp Multimeter Additional Information

Item # 71979
Brand Blue Sea Systems
Model 8110
Features Clamp allows measurement of AC and DC current in wires without disturbing the circuits or contacting live terminals.
Auto range simplifies operation: 0.01-400 Amps, 0.001-600 Volts.
Auto power-off selection - power turns off automatically after 10 minutes of non-use.
True RMS - required for accurate measurement of inverter output.
Large digital display makes reading measurements easy.
Data hold - press "HOLD" button during measurement to lock reading value.
Included Test Leads
Carrying Case
