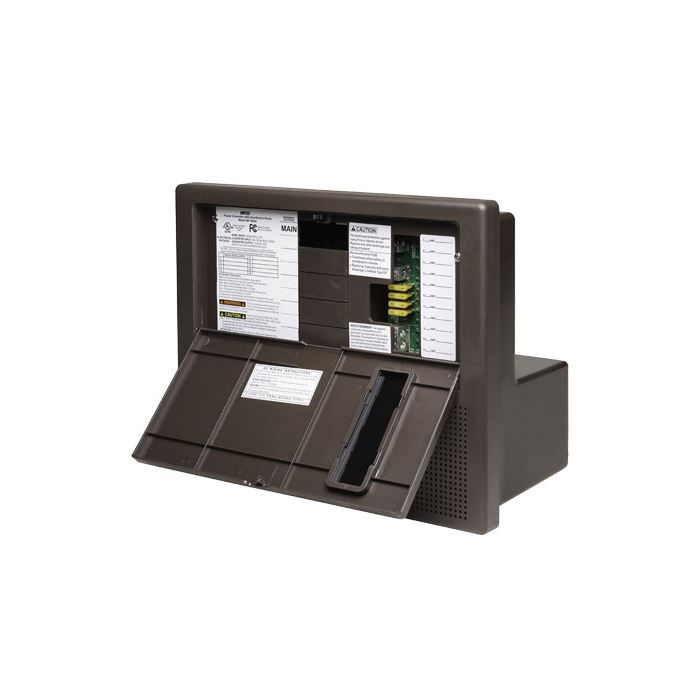

WFCO Brown 8900 Series 65 Amp Power Center
The WF-8900 Series has revolutionized RV power centers with its lighter weight, decorative doors and superior features. This series provides a clean, constant 13.6 volts DC nominal output range for reliable operation of electronics and appliances.
||105-130 Vac, 60 Hz, 1260 W
||65 Amps (Output Power: 1260 W)
||Converter Type: Three-Stage Converter Charger
Voltage Output: 13.2 – 14.4V DC Range
Absorption Mode (Nominal Voltage): 13.6V DC (nominal voltage)
Bulk Mode (Quick Charging Voltage): 14.4V DC (quick charging voltage)
Float Mode (Trickle Charge Voltage): 13.2V DC (trickle charge voltage)
Over Current : Yes
Over Temperature: Yes
Over Voltage : Yes
Reverse Polarity: Yes
Cooling System: Yes
AC Circuits (twin breakers): 1 main and 5 branch circuits
DC Circuits (Quantity): (2 30A max), 11 (9 20A max)
Case Material: Plastic
Case Color: Brown
Certifications : FCC
All models are UL and cUL-Listed and FCC Class B compliant
||*Power center does NOT include individual fuses or breakers.
||Outer dimensions: 13.875" W, 11.625" H, 9" D
Rough opening:12.25" x 11" x 7.375"
|Special Order Item
WARNING: This product can expose you to chemicals, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov
The WF-8965 model provides 65 amps and a clean, constant 13.6V DC nominal output, for reliable operation of electronics and appliances. Automatic three-stage charging extends the life of your battery with output voltage modes of 13.2V DC range “float” mode, 13.6V DC range “absorption” mode, and a 14.4V DC range “bulk” charge mode. The 8900 Series also maintains peace and quiet, as the cooling fan runs only when needed. Front-cooled fan installation does not create additional installation space requirements.
FCC Class B compliance for every power center model means that the units are designed no to cause interference with televisions, radios or other signals. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions, protecting the life of your power center and electrical system.
The 8900 Series models provide AC and DC distribution with innovative features. They can accommodate a 30-amp main AC circuit breaker and up to five branch circuits. Eleven-branch DC circuits are available with LED lights for each DC circuit to illuminate and identify open circuits. Front cover window allows for a quick visual check of the fuse LED lights.
*Power center does NOT include individual fuses or breakers.
