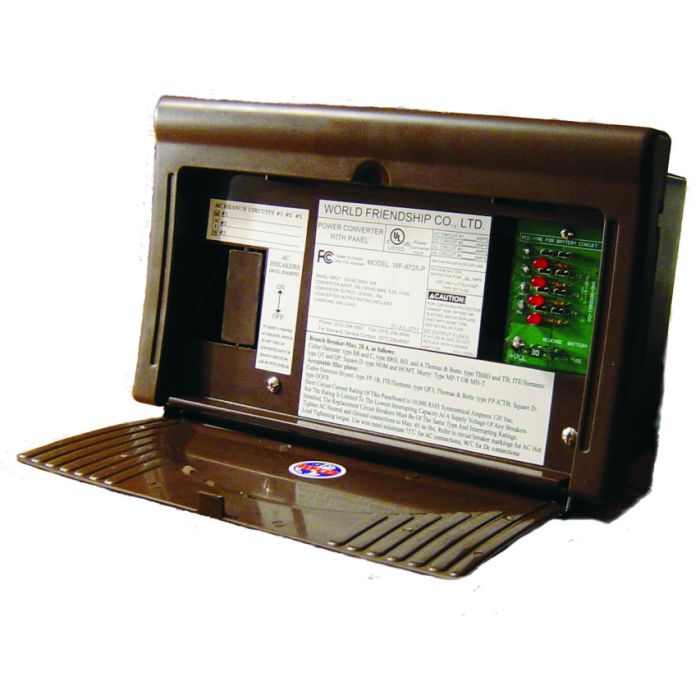

WFCO Brown 12 Amp Distribution Panel Converter
WFCO Brown 12 Amp Distribution Panel Converter
WF-8712 model converters provide 12A DC output, and a highly reliable nominal 13.6V DC with or without a battery. No extra filtering is required.
Item #
15662
Color
Brown
Special Order Item
No
Ships LTL Freight
No
Out of Stock
$153.98
Description / WFCO Brown 12 Amp Distribution Panel Converter
WFCO’s three-stage battery charging results in longer battery life and is totally automatic. Nominal voltage output modes are a 13.2V DC range “float” mode, 13.6V DC range “absorption” charge mode, and a 14.4V DC range “bulk” charge mode. Short-circuit and reverse polarity protection provides you with further reliability and peace of mind.
Every model is designed to comply with FCC Class B, which means that the converters do not cause interference with televisions, radios or other signals. The 8700 Series also brings you the convenience of built-in AC and DC distribution. 30-amp main AC breaker and a total of up to three 20-amp branch AC circuits can be installed. DC circuits include LED lights that illuminate to indicate open circuits.
*Power center does NOT include individual fuses or breakers.
Every model is designed to comply with FCC Class B, which means that the converters do not cause interference with televisions, radios or other signals. The 8700 Series also brings you the convenience of built-in AC and DC distribution. 30-amp main AC breaker and a total of up to three 20-amp branch AC circuits can be installed. DC circuits include LED lights that illuminate to indicate open circuits.
*Power center does NOT include individual fuses or breakers.
More Information
| Item # | 15662 |
|---|---|
| Brand | WFCO |
| Series | 8700 |
| Model | WF8712P |
| Style | Distribution Panel |
| Input | 105-130 VAC, 60 Hz |
| Output Amperage | 12 Amp (Output Power: 163 W) |
| Color | Brown |
| Features | Voltage Output: 13.2 – 14.4V DC Range Absorption Mode (Nominal Voltage): 13.6V DC (nominal voltage) Bulk Mode (Quick Charging Voltage): 14.4V DC (quick charging voltage) Float Mode (Trickle Charge Voltage): 13.2V DC (trickle charge voltage) AC Circuits (twin breakers): 4 (Main and 3 branch circuits) DC Circuits (Quantity): 4 (one battery circuit) Case Material: Plastic Case Color: Brown Over Current : Yes Over Temperature: Yes Over Voltage: Yes Reverse Polarity: Yes Cooling System: No Certifications : FCC Class B compliant |
| Included | *Power center does NOT include individual fuses or breakers. |
| Dimensions | 14.9˝ x 7.3˝ x 5˝ |
| Warranty | 2 Year |
| Net Weight | 4.75 |
| Special Order Item | No |
| UPC | 816227010018 |
