WFCO Black 35 Amp Distribution Panel Converter

Item #:
69093
Brand:
WFCO
Model:
WF-8735-PB

Quick Overview

WF-8735 model converters provide 35A DC output, and a highly reliable nominal 13.6V DC with or without a battery. No extra filtering is required.
Price: $159.00

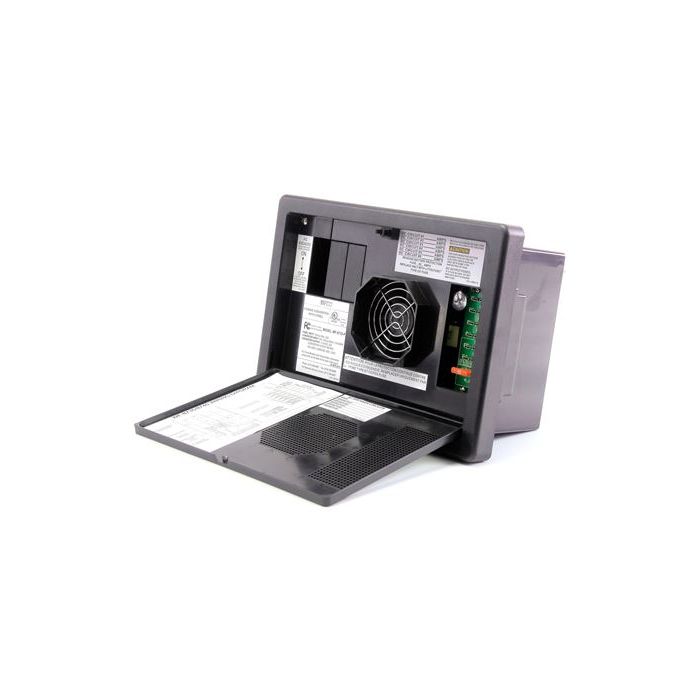

  • WFCO Black 35 Amp Distribution Panel Converter - Image 1
  • WFCO Black 35 Amp Distribution Panel Converter - Image 2
  • WFCO Black 35 Amp Distribution Panel Converter - Image 3
  • WFCO Black 35 Amp Distribution Panel Converter - Image 4
  • WFCO Black 35 Amp Distribution Panel Converter - Image 5
WARNING: This product can expose you to chemicals, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

WFCO Black 35 Amp Distribution Panel Converter Description

WFCO’s three-stage battery charging results in longer battery life and is totally automatic. Nominal voltage output modes are a 13.2V DC range “float” mode, 13.6V DC range “absorption” charge mode, and a 14.4V DC range “bulk” charge mode. Short-circuit and reverse polarity protection provide you with further reliability and peace of mind. The cooling fan for the WF-8735 operates only when needed and ensures quiet operation. Front-cooled fan installation does not create additional installation space requirements.

Every model is designed to comply FCC Class B, which means that the converters do not cause interference with televisions, radios or other signals. The 8735 model also brings you the convenience of built-in AC/DC distribution. 30-amp main AC breaker and a total of up to five 20-amp branch AC circuits can be installed. Six DC branch circuits include LED bulbs that illuminate to indicate open circuits.

*Power center does NOT include individual fuses or breakers.

Useful Downloads

Users Manual

WFCO Black 35 Amp Distribution Panel Converter Additional Information

Item # 69093
Brand WFCO
Series 8700
Model WF-8735-PB
Style Distribution Panel
Input 105-130 VAC, 60 Hz
Output Amperage 35 Amps (Output Power: 600 W)
Color Black
Features Converter Type: Three-Stage Converter Charger
Voltage Output: 13.2 – 14.4V DC Range
Absorption Mode (Nominal Voltage): 13.6V DC (nominal voltage)
Bulk Mode (Quick Charging Voltage): 14.4V DC (quick charging voltage)
Float Mode (Trickle Charge Voltage): 13.2V DC (trickle charge voltage)
AC Circuits (twin breakers): 6 (Main and 5 branch circuits)
DC Circuits (Quantity): 6 (one battery circuit)
Case Material: Plastic
Over Current : Yes
Over Temperature: Yes
Over Voltage : Yes
Reverse Polarity: Yes
Cooling System: Yes
Certifications : FCC
Dimensions 11 3/4” wide; 8 1/4” high; 5” deep
Warranty 2 Year
Net Weight 5.5
Special Order Item No
