Samlex 200A Inverter Installation Kit
Samlex 200A Inverter Installation Kit
Samlex’s Inverter Installation Kit contains a pair of heavy duty cables and a fuse assembly that is used to connect the inverter to the battery bank. The fuse protects your equipment in the event of a battery short-circuit and the cables provide a safe and easy plug and play connection.
Item #
88560
Special Order Item
No
Ships LTL Freight
No
ONLY 1 LEFT!
$193.30
Description / Samlex 200A Inverter Installation Kit
Samlex uses the highest quality of industrial grade, flexible cables suitable to be used as battery cables for automotive and renewable energy applications. Key features:
- 600V rating
- Very wide operating temperature of -50°C to 105°C
- High strand count, annealed, and tinned copper conductors for high flexibility
- Ethylene Propylene Rubber (EPR) jacket provides the high 600V insulation and resistance to abrasion, oils, acids and heat

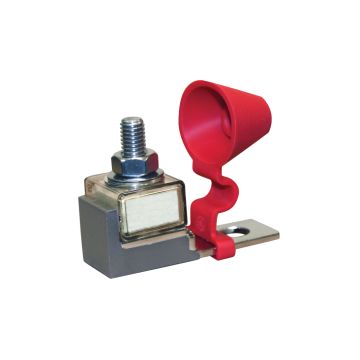

Design Features of Fuses and Fuse Holders Provided with the Kits:
- 100A, 200A and 300A Marine Rated Battery Fuses are provided with DC-1000-KIT, DC-2000-KIT and DC-2500-KIT respectively. The MRBF Fuse with high Ampere Interrupting Capacity (AIC) provides easy, weatherproof and safe short circuit protection.
- 600V rating
- Very wide operating temperature of -50°C to 105°C
- High strand count, annealed, and tinned copper conductors for high flexibility
- Ethylene Propylene Rubber (EPR) jacket provides the high 600V insulation and resistance to abrasion, oils, acids and heat
Design Features of Fuses and Fuse Holders Provided with the Kits:
- 100A, 200A and 300A Marine Rated Battery Fuses are provided with DC-1000-KIT, DC-2000-KIT and DC-2500-KIT respectively. The MRBF Fuse with high Ampere Interrupting Capacity (AIC) provides easy, weatherproof and safe short circuit protection.
More Information
| Item # | 88560 |
|---|---|
| Brand | Samlex |
| Model | DC-2000-KIT |
| Input | 12 V, 1000-1700 Watts |
| Features | Cable Gauge: AWG #2. Fuse Size: 200A. |
| Dimensions | Comes with 10ft of cable x 2 |
| Warranty | 2 Year |
| Net Weight | 6.20 |
| Special Order Item | No |
| UPC | 622988180224 |
