Progressive Dynamics Inteli-Power 4500 Series 90 Amp Ultimate All-In-One AC/DC Distribution Panel Converter

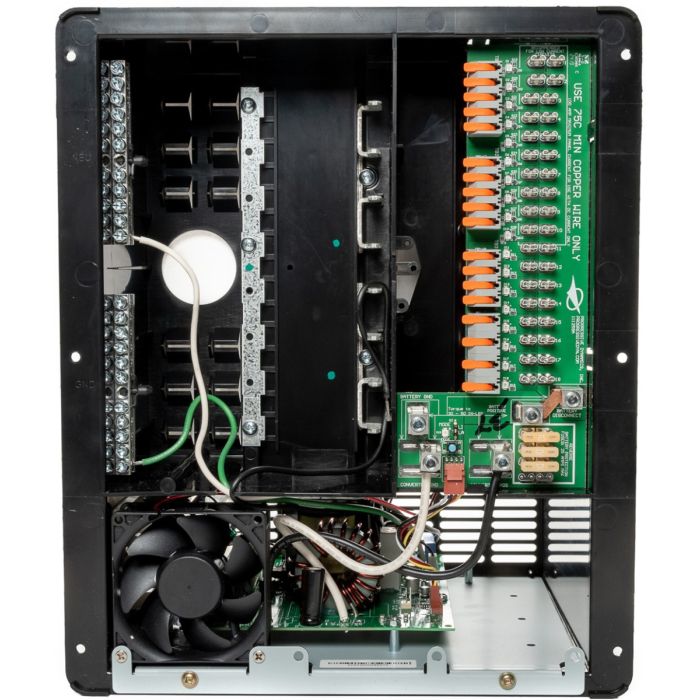

This is Progressive Dynamics, Inc. ultimate All-In-One 240V input voltage, 50 Amp AC/DC Distribution Panel! (Photo is a stock photo of the model PD4560 and does not represent the actual product)
- Item #
- 97652
- Color
- Black
- Special Order Item
- No
- Ships LTL Freight
- No
- Return Policy
- Non-Returnable/Non-Refundable
5+ In Stock
$577.48
Description / Progressive Dynamics Inteli-Power 4500 Series 90 Amp Ultimate All-In-One AC/DC Distribution Panel Converter
The AC Distribution Panel is rated for 240V input voltage at 50 Amps and has provisions for up to 12 branch circuit breakers plus a center feed dual 50 Amp main breaker (not included). The 12 built-in push and lock strain relief wiring connectors make installation quick and easy and saves over 50% on installation costs. The Inteli-Power® 4500 Series also has an attractive lightweight panel design made from black impact-resistant high temperature polymers.
DC Distribution Panel Features:
- Top ten fuse holders recommended for low current devices such as smoke
and carbon monoxide detectors.
- 18 branch fuse holders with 4-30 Amp circuits. Maximum rating 20 Amps
on remaining circuits — available with terminal blocks .
- LED indicators identify which fuse is blown.
- Converter/Charger section is accessible from the front.
- Converter/Charger ratings of 60, 75 and 90 Amps.
- Easy access reverse battery protection fuses.
- DC disconnect tie in.
DC Distribution Panel Features:
- Top ten fuse holders recommended for low current devices such as smoke
and carbon monoxide detectors.
- 18 branch fuse holders with 4-30 Amp circuits. Maximum rating 20 Amps
on remaining circuits — available with terminal blocks .
- LED indicators identify which fuse is blown.
- Converter/Charger section is accessible from the front.
- Converter/Charger ratings of 60, 75 and 90 Amps.
- Easy access reverse battery protection fuses.
- DC disconnect tie in.
More Information
| Item # | 97652 |
|---|---|
| Brand | Progressive Dynamics |
| Series | Inteli-Power® 4500 Series |
| Model | PD4590AV |
| Style | Distribution Panel |
| Input | 105-130VAC 50/60 Hz 1550 Watts |
| Output Amperage | 90 Amps (13.6 - 14.6 VDC) |
| Color | Black |
| Features | - Can be installed vertically (converter section down) or horizontally (converter section to the right) - Reverse battery protection - Electronic current limiting - High and Low AC input protection - Intelligent, variable speed, cooling fan - Lead Acid/ Lithium Switch is NEW feature - Automatic thermal protection - Press open door for easy access to circuit breakers - Front access to large wiring compartment - Optional DC Ground Buss can be user installed in the DC wiring compartment. - AC Section: 240/120 VAC 50 Amps Maximum* *120 VAC 50 Amp Maximum* 12 Branch Circuits Converts: 105-130 Volt AC To 13.6-14.6 Volt DC Continuous Output Power: 1550 Watt Ampere Rating: 90 Amp Efficiency: 80 Percent |
| Included | (1) 4500 Series 90 Amp Ultimate All-In-One AC/DC Distribution Panel Converter |
| Dimensions | 11.85” W x 14.125” H x 7.80” D |
| Cutout | Cutout Size: 10.125” W x 13.25” H |
| Warranty | Limited 2 Year Manufacturer Warranty |
| Net Weight | 13.0 |
| Special Order Item | No |
| Return Policy | Non-Returnable/Non-Refundable |
| UPC | 675566459069 |
