Blue Ox Twist Lock Invert-A-Ball Gooseneck Hitch DH2300 for Chevy/GMC
Blue Ox Gooseneck hitches have 30,000 lb. gross towing weight and 7,500 lb. tongue weight capacity. Affordable, easy installation, custom mounting bracket kits, and Invert-A-Ball for a smooth truck bed.
||See application guide found above in the "Useful Downloads" section.
|Tow Rating - lb.
|Tongue Capacity - lb.

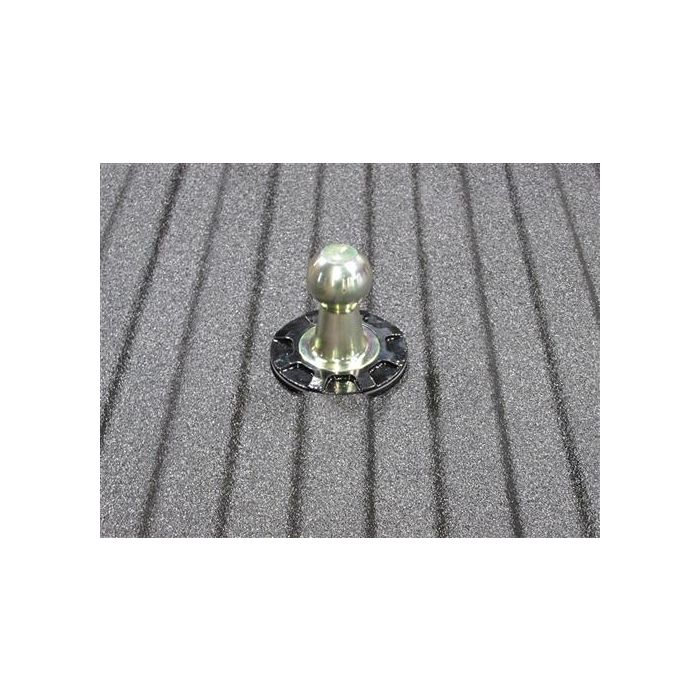

||No handle, no release pin, full access to the truck bed.
Ball stays in place with a self-locking twist mechanism.
Ball drops directly into socket for storage.
Self-cleaning socket design keeps the ball from seizing.
7,500 lb tongue capacity.
30,000 lb gross capacity.
||Complete Packaging - Your Blue Ox Hitch is shipped complete with mounting instructions, bolts, brackets, and safety chain loops.
|Special Order Item
Gooseneck trailer owners are different than other RVers – You tow cattle, horses or classic cars. You are going places and need a hitch that is easy to set-up and strong enough to tow your cargo. The BlueOx Gooseneck hitch is perfect for you! BlueOx has made the their Gooseneck hitch tough enough to tow up to 30,000 lbs of gross weight with a 7500 lb. tongue weight towing capacity, so you can tow with confidence!
Installation is easy! BlueOx Gooseneck hitches secure under the bed of your truck to the existing frame using holes that are already there when possible, no welding required. All you need is a 5” hole in the truck bed for the tow hitch ball.
Custom fit bracket kits for the most popular trucks, Chevy/GMC, Ford, Dodge, and Toyota! BlueOx Diamond gooseneck hitches feature custom made mounting bracket kits that are based on your truck model and bed length to utilize preexisting holes in your truck frame when possible. You are bound to find the right hitch for your truck!
Operation is simple!
Installing the Hitch Ball:
1. Rotate the locking collar to release the latch pawl.
2. Align the ball with the collar and drop the ball into the hitch. Release the locking collar.
Removing the Hitch Ball:
1. Rotate the locking collar to release the latch pawl. Pull straight up on the ball to remove from the hitch.
Storing the Hitch Ball:
1. Rotate the locking collar to release the latch pawl. Align the ball with the collar and drop the ball into the hitch.
2. Release the locking collar.
Gooseneck hitches do not take up all the room in the bed of your truck that a standard 5th wheel hitch does. When you are finished towing, turn the tow ball and flip it upside down to create an unobstructed truck bed that is ready for a trip to the local hardware store.
Proudly made in the USA! Limited lifetime warranty from BlueOx.
At Dyers we are here to help you find the parts and accessories you need. Look to the application guide under useful downloads to see which BlueOx Gooseneck hitch is right for your truck and get on the road trip of a lifetime!
