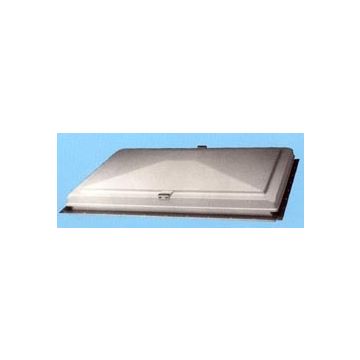

Dometic New Style Refrigerator Roof Vent Kit (Cap and Base)

Item #:
82064
Brand:
Dometic
Model:
3311236.000

Quick Overview

Dometic new style plastic refrigerator roof vent kit.
Price: $29.98 $25.88
You Save: $4.10 (14%)
  • Dometic New Style Refrigerator Roof Vent Kit (Cap and Base) - Image 1
  • Dometic New Style Refrigerator Roof Vent Kit (Cap and Base) - Image 2

Dometic New Style Refrigerator Roof Vent Kit (Cap and Base) Description

Installation:
a) Center the base over the 6 ½” x 23 ¾” cutout.
b) Secure using ten #10 screws.
c) Place cap on top of base.
d) Secure cap to base using four #10 screws. These screws must be a minimum of 1 ¼” long to provide proper engagement.
e) Apply sealant over all the screws.

Dometic New Style Refrigerator Roof Vent Kit (Cap and Base) Additional Information

Item # 82064
Brand Dometic
Model 3311236.000
Color Polar White
Included Cap
Base
Hardware NOT included
Dimensions Base -
Bottom Flange Overall: 25-7/8" L x 8-1/4" W
Top: 23" L x 6-3/4" W
Base Sits 3-5/8" H Overall
Mounting Holes for Cap Spaced: 21-7/8" L x 5-3/8" W

Cap -
Overall: 26-5/8" L x 11-1/4" W
Cap sits 3-7/8" H
Mounting Holes Spaced: 21-7/8" L x 5-3/8" W
Net Weight 2.25
Gross Weight 3.3
Special Order Item No
LTL Freight No
